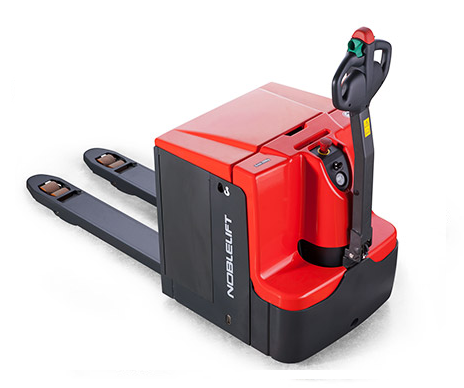

GIỚI THIỆU CHI TIẾT VỀ XE NÂNG ĐIỆN THẤP 1600KG PT16L - SIÊU THỊ XE NÂNG
CÔNG TY TNHH PATIHA VIỆT NAM
Tại Đà Nẵng: 296 Trường Sơn, Hòa Nhơn, Hòa Vang, Đà Nẵng
Tại TPHCM: 105/2 Quốc Lộ 1A, P. Tân Thới Hiệp, Q12, TPHCM, VN.
Tại Bình Dương : SIÊU THỊ XE NÂNG - 41/3 Quốc Lộ 13,P. Thuận Giao,
TX Thuận An, Bình Dương
Điện Thoại: 0938.164.386 Hoặc (0274) 399 1089 / 90
Fax: 0938.164.386
Chăm sóc khách hàng 0906 745 968
Website: patiha.com.vn http://noblelift.com.vn/ http://www.noblelift.com/
Type sheet for industrial truck acc. to VDI 2198 |
||||||
Distinguishing mark |
1.2 |
Manufacturer`s type designation |
|
PT 16L |
PT 20L |
PT 25L |
1.3 |
Power(battery,diesel,petrol gas,manual) |
|
Battery |
|||
1.4 |
Operator type |
|
pedestrian |
|||
1.5 |
Load Capacity / rated load |
Q (t) |
1.6 |
2.0 |
2.5 |
|
1.6 |
Load centre distance |
c (mm) |
600 |
|||
1.8 |
Load distance, centre of drive axle to fork |
x(mm) |
892 |
|||
1.9 |
Wheelbase |
y (mm) |
1261 |
1327 |
1541 |
|
Weight |
2.1 |
Service weight |
kg |
445 |
535 |
740 |
2.2 |
Axle loading, laden front/rear |
kg |
715/1330 |
855/1680 |
1040/2200 |
|
2.3 |
Axle loading, unladen front/ rear |
kg |
345/100 |
415/120 |
540/200 |
|
Tires, chassis |
3.1 |
Tires |
|
, Polyurethane (PU) |
||
3.2 |
Tire size, front |
Æ x w (mm) |
Æ230X70 |
|||
3.3 |
Tire size, rear |
Æ x w (mm) |
Æ84X84 |
|||
3.4 |
Additional wheels (dimensions) |
Æ x w (mm) |
Æ100X40 |
|||
3.5 |
Wheels, number front/ rear(x=driven wheels) |
|
1×+2/4 |
|||
3.6 |
Tread, front |
b10 (mm) |
510 |
|||
3.7 |
Tread, rear |
b11 (mm) |
367/512 |
|||
Dimensions |
4.4 |
Lift height |
h3 (mm) |
125 |
||
4.9 |
Height of tiller in drive position min. / max. |
h14 (mm) |
850/1385 |
|||
4.15 |
Height, lowered |
h13 (mm) |
85 |
|||
4.19 |
Overall length |
l1 (mm) |
1670 |
1735 |
1950 |
|
4.20 |
Length to face of forks |
l2 (mm) |
520 |
595 |
810 |
|
4.21 |
Overall width |
b1 (mm) |
729 |
|||
4.22 |
Fork dimensions |
s/e/l (mm) |
60/173/1150 |
|||
4.25 |
Distance between fork-arms |
b5 (mm) |
540/685 |
|||
4.32 |
Ground clearance, centre of wheelbase |
m2 (mm) |
25 |
|||
4.33 |
Aisle width for pallets 1000 x 1200 crossways |
Ast(mm) |
1885 |
1955 |
2175 |
|
4.34 |
Aisle width for pallets 800X1200 lengthways |
Ast (mm) |
1935 |
2005 |
2225 |
|
4.35 |
Turning radius |
Wa (mm) |
1440 |
1490 |
1750 |
|
Performance |
5.1 |
Travel speed, laden/ unladen |
km/h |
6.0/6.0 |
5.5/6.0 |
|
5.2 |
Lift speed, laden/ unladen |
m/s |
0.025/0.035 |
0.022/0.030 |
0.035/0.045 |
|
5.3 |
Lowering speed, laden / unladen |
m/s |
0.035/0.030 |
0.035/0.035 |
0.040/0.040 |
|
5.8 |
Gradeability, laden/ unladen |
% |
8/15 |
|||
5.10 |
Service brake |
|
Electromagnetic |
|||
Motors |
6.1 |
Drive motor rating S2 60min |
kW |
1.3 |
1.7 |
|
6.2 |
Lift motor rating at S3 10% |
kW |
0.8 |
2.2 |
||
6.3 |
Battery acc. to DIN 43531 /35 / 36 A, B, C, no |
|
2VBS |
2PzS |
3PzS |
|
6.4 |
Battery voltage, nominal capacity K5 |
V/Ah |
160 |
210 |
375 |
|
6.5 |
Battery weight (minimum) |
kg |
150 |
215 |
300 |
|
6.6 |
Energy consumption acc. to VDI cycle |
KWh/h |
0.44 |
0.39 |
0.92 |
|
Addi- tional data |
8.1 |
Type of drive control |
|
AC -Speed Control |
||
8.4 |
Sound level at driver`s ear acc. to EN 12053 |
dB(A) |
67 |
69 |
65 |
