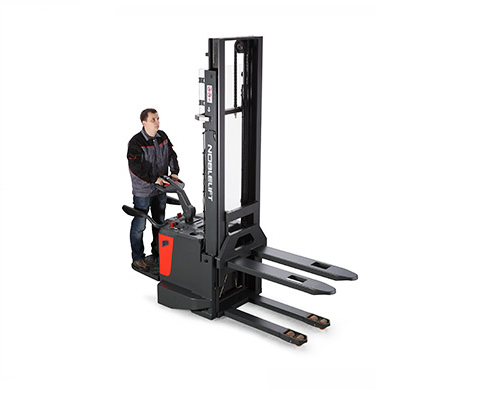

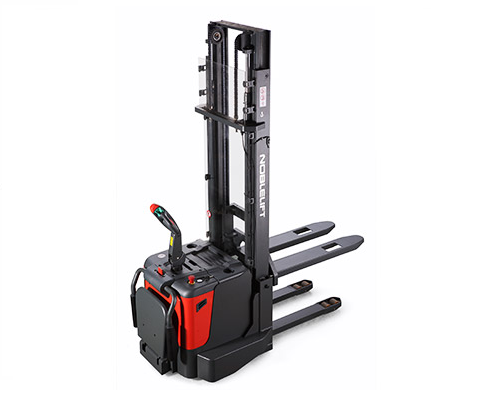

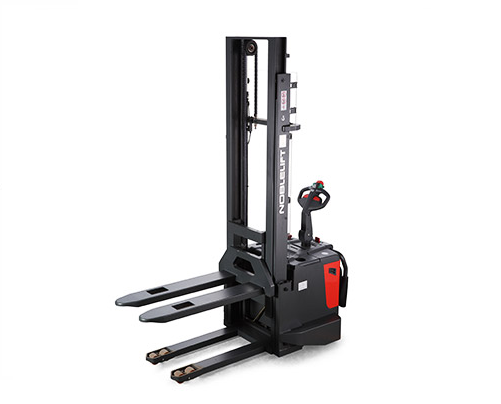

Distinguishing mark

1.2

Manufacturer`s type designation

PS 20

2600

2900

3600

1.3

Power (battery ,diesel, petrol, gas, manual)

Battery

1.4

Operator type

Pedestrian

1.5

Load Capacity / rated load

Q(t)

2

1.6

Load centre distance

C(mm)

600

1.8

Load distance ,centre of drive axle to fork

x(mm)

760

1.9

Wheelbase

y(mm)

1508

Weight

2.1

Service weight

Kg

1440

1460

1515

2.2

Axle loading, laden front/rear

Kg

1245/2195

1250/2210

1270/2245

2.3

Axle loading, unladen front/rear

Kg

1020/420

1030/430

1070/445

Tires, chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size, front

ÆxW (mm)

Ф230×75

3.3

Tire size, rear

ÆxW (mm)

Ф84×70

3.4

Additional wheels(dimensions)

ÆxW (mm)

Ф124x60

3.5

Wheels, number front/rear(x=driven wheels)

1x+2/4

3.6

Track, front

b₁₀(mm)

766

3.7

Track, rear

b₁₁(mm)

400/515

Dimensions

4.2

Lowered mast height

h₁(mm)

1930

2080

2430

4.3

Free Lift height

h₂(mm)

-

4.4

Lift height

h₃(mm)

2515

2815

3515

4.5

Extended mast height

h₄(mm)

3187.5

3487.5

4187.5

4.9

Height of tiller in drive position min./ max.

h₁₄(mm)

964/1326

4.15

Height, lowered t

h₁₃(mm)

85

4.19

Overall length

l₁(mm)

2083

4.20

Length to face of forks

l₂(mm)

933

4.21

Overall width

b₁(mm)

1000

4.22

Fork dimensions

s/e/l(mm)

60/185/1150

4.25

Distance between fork-arms

b₅(mm)

570/685

4.32

Ground clearance, centre of wheelbase

m₂(mm)

25

4.33

Aisle width for pallets 1000X1200 crossways

Ast(mm)

2572

4.34

Aisle width for pallets 800X1200 lengthways

Ast(mm)

2520

4.35

Turning radius

Wa(mm)

1725

Performance data

5.1

Travel speed, laden/ unladen

km/h

5.2/5.5

5.2

Lift speed, laden/ unladen

m/s

0.11/0.16

5.3

Lowering speed, laden/ unladen

m/s

0.1/0.1

5.8

Max. gradeability, laden/ unladen

%

6/12

5.10

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating S2  60min

kw

1.3

6.2

Lift motor rating at S3  4.5%

kw

3.0

6.3

Battery acc. to DIN 43531/35/36  A, B, C, no

B，3PzS

6.4

Battery voltage, nominal capacity K5

V/Ah

24/350

6.5

kg

288

6.6

Energy consumption acc: to VDI cycle

kWh/h

2.83

Additional data

8.1

Type of drive control

AC- speed control

8.4

Sound level at driver`s ear acc. to EN 12053

dB(A)

69
