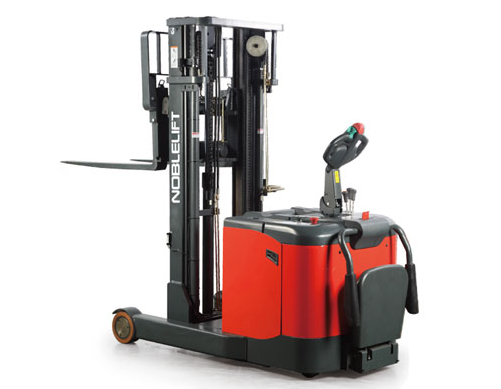

Technical data sheet for industrial truck acc. to VDI 2198

1KG=2.2LB 1INCH=25.4mm

Distinguishing
mark

1.2

Manufacturer`s type designation

PS 13
RM16

PS 13
RM18

PS 13
RM30

PS 13
RM37

PS 13
RM45

1.3

Drive:electric(battery or mains), diesel, petrol, fuel gas, manual

Battery

1.4

Type of operation: hand, pedestrian, standing, seated, order-picker

Pedestrian

1.5

Load Capacity / rated load

Q(kg)

1300

1.6

Load centre distance

C(mm)

600

1.8

Load distance ,centre of drive axle to fork

x(mm)

413

388

378

1.9

Wheelbase

y(mm)

1255

1355

Weight

2.1

Service weight

kg

1820

1850

2020

2236

2460

2.2

Axle loading, laden front/rear

kg

1480/1640

1500/1650

1580/1740

1680/1855

1770/1990

2.3

Axle loading, unladen front/rear

kg

1350/470

1370/480

1495/525

1655/580

1820/640

Tyres, chassis

3.1

Tyres: solid、rubber, superelastic, pneumatic, polyurethane

Polyurethane(PU)

3.2

Tyre size, front

ØxW

Ø230 × 75

3.3

Tyre size, rear

ØxW

Ø210 × 85

3.4

Additional wheels (dimensions)

ØxW

Ø150 × 54

3.5

Wheels, number front/rear(x=driven wheels)

1×+2/2

3.6

Track width, front

b10(mm)

620

3.7

Track width, rear

b11(mm)

993

Dimensions

4.1

Mast/fork carriage tilt forward/backward

α/β(°)

2/4

4.2

Lowered mast height

h1 (mm)

2076

2276

2101

1850

2096

4.3

Free lift

h2 (mm)

1550

1750

152

1260

1520

4.4

Lift height

h3 (mm)

1550

1750

2950

3650

4450

4.5

Extended mast height

h4 (mm)

2463

2663

3863

4565

5395

4.9

Height of tiller in drive position min./ max.

h14(mm)

1034/1415

4.15

Lowered height

h13(mm)

50

4.19

Overall length

l1 (mm)

2265

2290

2400

4.20

Length to face of forks

l2 (mm)

1115

1140

1250

4.21

Overall width

b1(mm)

1104

4.22

Fork dimensions

e/l (mm)

35/100/950(1150)

4.25

Width over forks

b5 (mm)

200~740

4.26

Distance between supports arms/loading surfaces

b4 (mm)

784

4.28

Reach distance

l4(mm)

550

580

4.32

Ground clearance, centre of wheelbase

m2 (mm)

59

4.33

Aisle width for pallets 1000X1200 crossways

Ast (mm)

2632

2650

2753

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

2675

2698

2803

4.35

Turning radius

Wa (mm)

1593

1689

4.37

Length across wheel arms

l7(mm)

1651

1751

Performance
data

5.1

Travel speed, laden/ unladen

km/h

5.0/5.5

5.0/5.5

5.2

Lift speed, laden/ unladen

m/s

0.85/1.22

1.1/1.65

5.3

Lowering speed, laden/ unladen

m/s

1.25/0.8

1.0/0.95

5.8

Max. gradient performance, laden/ unladen

%

5/8

5.10

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating s2 60min

kw

1.85

6.2

Lift motor rating at s3 15%

kw

2.2

3.0

6.3

Battery acc. to DIN, no

3PzS

5PzS

6.4

Battery voltage, nominal capacity

V/Ah

24/270

24/400

Additional data

8.1

Type of drive control

MOSFET Control

8.4

sound level at driver`s ear acc.to EN 12053

dB(A)

67
