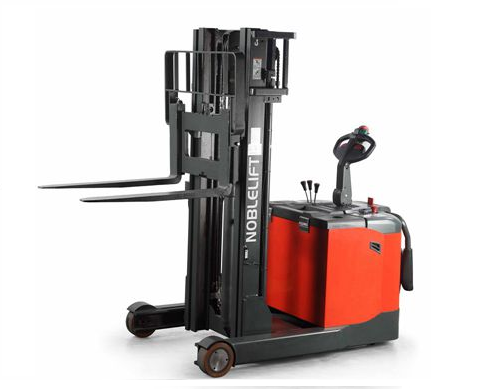

Technical data sheet for industrial truck acc. to VDI 2198

Identification

1.2

Manufacturer`s type designation

PS15

RM16

PS15

RM18

PS15

RM30

PS15

RM36

PS15

RM45

1.3

Drive:electric(battery or mains)、diesel、petrol、fuel gas、manual

Battery

1.4

Type of operation: hand, pedestrian, standing, seated, order-picker

Pedestrian

1.5

Load Capacity / rated load

Q(kg)

1500

1.6

Load centre distance

C(mm)

600

1.8

Load distance ,centre of drive axle to fork

x(mm)

465

1.9

Wheelbase

y(mm)

1500

Weights

2.1

Service weight

kg

1800

1850

1950

2150

2200

2.2

Axle loading, laden front/rear

kg

1300/

2000

1330/

2020

1370/

2080

1470/

2180

1500/

2200

2.3

Axle loading, unladen front/rear

kg

1280/

520

1300/

550

1350/

600

1450/

700

1480/

720

Wheels, Chassis

3.1

Tyres: solid、rubber, superelastic, pneumatic, polyurethane

Polyurethane

3.2

Tyre size, front

ÆxW

Æ250 ×82

3.3

Tyre size, rear

ÆxW

Æ230×100

3.4

Additional wheels (dimensions)

ÆxW

Æ124×60

3.5

Wheels, number front/rear (x=driven wheels)

1×+2/2

3.6

Track width, front

b₁₀(mm)

680

3.7

Track width, rear

b₁₁(mm)

988

Basic Dimensions

4.1

Mast/fork carriage tilt forward/backward

α/β(°)

2/4

4.2

Lowered mast height

h₁ (mm)

2196

2396

2096

1796

2096

4.3

Free lift

h₂ (mm)

1600

1800

-

1200

1500

4.4

Lift height

h₃ (mm)

1600

1800

3000

3600

4500

4.5

Extended mast height

h₄ (mm)

2485

2685

3885

4485

5385

4.9

Height of tiller in drive position min./ max.

h₁₄(mm)

1034/1415

4.15

Lowered height

h₁₃(mm)

50

4.19

Overall length

l₁ (mm)

2240

4.20

Length to face of forks

l₂ (mm)

1870

4.21

Overall width

b₁(mm)

1090

4.22

Fork dimensions

s/e/l (mm)

35/100/950（1150）

4.25

Width over forks

b₅ (mm)

200~760

4.26

Distance between supports arms/loading surfaces

b₄ (mm)

790

4.28

Reach distance

l₄(mm)

610

4.32

Ground clearance, centre of wheelbase

m₂ (mm)

39

4.33

Aisle width for pallets 1000X1200 crossways

Ast (mm)

2730

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

2770

4.35

Turning radius

Wa (mm)

1726

Performance Data

5.1

Travel speed, laden/ unladen

km/h

5.0/5.5

5.2

Lift speed, laden/ unladen

m/s

1.1/1.65

5.3

Lowering speed, laden/ unladen

m/s

1.0/0.95

5.8

Max. gradient performance, laden/ unladen

%

5/8

5.10

Service brake

Electromagnetic

E- Motor

6.1

Drive motor rating s2 60min

kw

1.6

6.2

Lift motor rating at s3 15%

kw

3.0

6.3

Battery acc. to DIN, no

3PzS

4Pzs

6.4

Battery voltage, nominal capacity

V/Ah

24/270

24/400

6.6

Energy consumption acc. to VDI cycle

KWh/h

Others

8.1

Type of drive control

MOSFET Control

8.4

sound level at driver`s ear acc.to EN 12053

dB(A)

67
