Technical data sheet for industrial trucks acc. to VDI 2198

Distinguishing mark

1.2

Manufacturer`s type designation

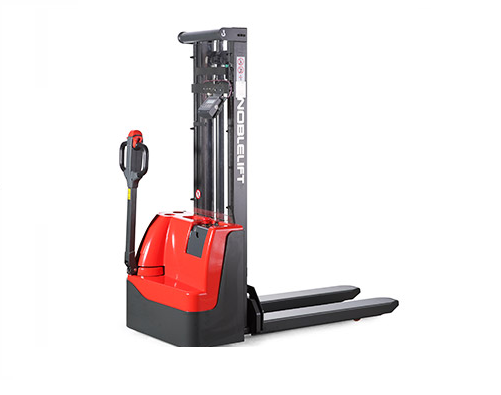

ECL10SC

1.3

Drive

electric

1.4

Operator type

pedestrian

1.5

Load Capacity / rated load

Q(t)

1.0

1.6

Load centre distance

c(mm)

600

1.8

Load distance ,centre of drive axle to fork

x(mm)

780

1.9

Wheelbase

Y(mm)

1281

Weight

2.1

Service weight

kg

570

2.2

Axle loading, laden front/rear

kg

590/960

2.3

Axle loading, unladen front/rear

kg

405/145

Tyres, Chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size, front

ÆxW (mm)

Æ220 × 70

3.3

Tire size, rear

ÆxW (mm)

Æ80 × 93

3.4

Additional wheels(dimensions)

ÆxW (mm)

Æ124 × 60

3.5

Wheels, number front/rear(x=driven wheels)

1x+1 / 2

3.6

Tread, front

b₁₀ (mm)

529

3.7

Tread, rear

b₁₁ (mm)

420/ 535

Dimensions

4.2

Lowered mast height

h₁ (mm)

1950

4.3

Free Lift height

h₂ (mm)

70

4.4

Lift

h₃ (mm)

2808

4.5

Extended mast height

h₄ (mm)

3325

4.9

Height of tiller in drive position min./ max.

h₁₄ (mm)

785/ 1300

4.15

Height, lowered

h₁₃ (mm)

92

4.19

Overall length

l₁ (mm)

1820

4.20

Length to face of forks

l₂ (mm)

652

4.21

Overall width

b₁ (mm)

800

4.22

Fork dimensions

s/e/l (mm)

83/167/1150

4.25

Distance between fork- arms

b₅ (mm)

584

4.32

Ground clearance, centre of wheelbase

m₂ (mm)

9

4.33

Aisle width for pallets 1000X1200 crossways

Ast (mm)

2318

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

2250

4.35

Turning radius

Wa (mm)

1485

Performance data

5.1

Travel speed, laden/ unladen

km/h

4.3 / 4.5

5.2

Lift speed, laden/ unladen

m/s

0,11/ 0,16

5.3

Lowering speed, laden/ unladen

m/s

0,13/ 0,11

5.8

Max. gradeability, laden/ unladen

%

5 / 10

5.10

Service brake

electromagnetic

Electric- motor

6.1

Drive motor rating S2 60min

kW

0.45

6.2

Lift motor rating at S3 7.5%

kW

2.2

6.3

Battery acc. to DIN 43531/ 35/ 36 A, B, C, no

no

6.4

Battery voltage, nominal capacity K5

V/Ah

2X 12/ 85 1)

6.5

Battery  weight

kg

2X 25

6.6

Energy consumption acc. to VDI cycle

kWh/h

0.73

Addi- tional data

8.1

Type of drive control

DC- Speed Controller

8.4

sound level at driver`s ear acc. to EN 12053

dB(A)

< 70
