Technical data sheet for industrial trucks acc. to VDI 2198

1KG=2.2LB 1INCH=25.4mm

Distinguishing mark

1.2

Manufacturer`s type designation

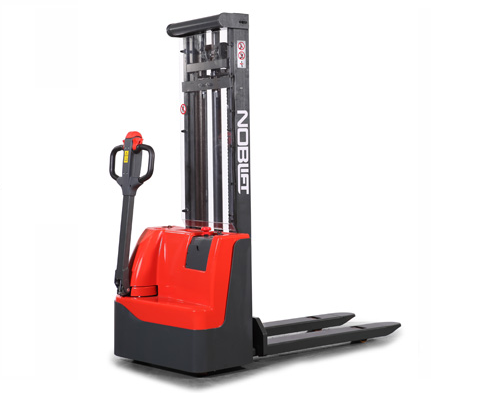

ECL1029

ECL1029M

1.3

Drive

Battery

1.4

Operator type

Pedestrian

1.5

Load Capacity / rated load

Q(t)

1.0

1.6

Load centre distance

c(mm)

600

1.8

Load distance ,centre of drive axle to fork

x(mm)

800

733

1.9

Wheelbase

Y(mm)

1281

Weight

2.1

Service weight

kg

510

756

2.2

Axle loading, laden front/rear

kg

580/930

786/970

2.3

Axle loading, unladen front/rear

kg

385/125

530/226

Tyres, Chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size, front

ÆxW (mm)

Æ220 × 70

3.3

Tire size, rear

ÆxW (mm)

Æ80 × 93

3.4

Additional wheels(dimensions)

ÆxW (mm)

Æ124 × 60

3.5

Wheels, number front/rear(x=driven wheels)

1x+1 / 2

3.6

Tread, front

b₁₀ (mm)

529

3.7

Tread, rear

b₁₁ (mm)

420/ 535

1130 - 1500

Dimensions

4.2

Lowered mast height

h₁ (mm)

1950

1935

4.3

Free Lift height

h₂ (mm)

70

70

4.4

Lift

h₃ (mm)

2840

2840

4.5

Extended mast height

h₄ (mm)

3325

3420

4.9

Height of tiller in drive position min./ max.

h₁₄ (mm)

785/ 1300

4.15

Height, lowered

h₁₃ (mm)

85

40

4.19

Overall length

l₁ (mm)

1800

1638

4.2

Length to face of forks

l₂ (mm)

650

688/ 700

4.21

Overall width

b₁ (mm)

800

1250

4.22

Fork dimensions

s/e/l (mm)

60/150/1150

35/100/1150 ¹⁾

4.25

Distance between fork- arms

b₅ (mm)

570/ 685

282 - 800

4.32

Ground clearance, centre of wheelbase

m₂ (mm)

29

25

4.33

Aisle width for pallets 1000×1200 crossways

Ast (mm)

2318

2341

4.34

Aisle width for pallets 800×1200 lengthways

Ast (mm)

2250

2300

4.35

Turning radius

Wa (mm)

1485

Performance data

5.1

Travel speed, laden/ unladen

km/h

4.3 / 4.5

5.2

Lift speed, laden/ unladen

m/s

0.11/ 0.16

5.3

Lowering speed, laden/ unladen

m/s

0.13/ 0.11

5.8

Max. gradeability, laden/ unladen

%

5/10

5.1

Service brake

Electromagnetic

Electric- motor

6.1

Drive motor rating S2 60min

kW

0.45

6.2

Lift motor rating at S3 7.5%

kW

2.2

6.3

Battery acc. to DIN 43531/ 35/ 36 A, B, C, no

no

6.4

Battery voltage, nominal capacity K5

V/Ah

2× 12/ 85 ²⁾

6.5

Battery  weight

kg

2× 25

6.6

Energy consumption acc. to VDI cycle

kWh/h

0.73

0.76

Addi- tional data

8.1

Type of drive control

DC- Speed Controller

8.4

sound level at driver`s ear acc. to EN 12053

dB(A)

< 70
