Type sheet for industrial truck acc. to VDI 2198

Distinguishing mark

1.2

Manufacturer`s type designation

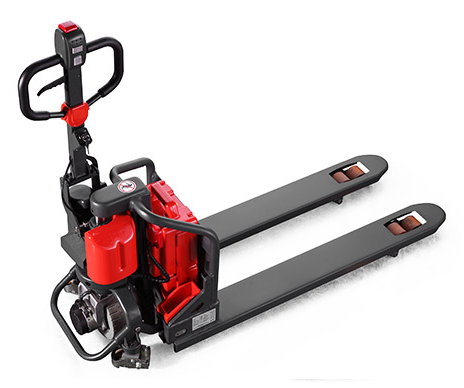

PT E12

1.3

Drive

Battery

1.4

Operator type

Pedestrian

1.5

Load Capacity / rated load

Q (t)

1.2

1.6

Load centre distance

c (mm)

600

1.8

Load distance ,centre of drive axle to fork

x (mm)

947

1.9

Wheelbase

y (mm)

1293

Weight

2.1

Service weight

kg

170

2.2

Axle loading, laden front/rear

kg

500 / 870

2.3

Axle loading, unladen front/rear

kg

130 / 40

Tyres, chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size,front

Æ x w (mm)

Æ 220×70

3.3

Tire size,rear

Æ x w (mm)

Æ 80×93

Æ 80×70

3.4

Additional wheels(dimensions)

Æ x w (mm)

Æ 80×30

3.5

Wheels,number front/rear(x=driven wheels)

1x +2/ 2

1x +2/ 4

3.6

Tread, front

b₁₀ (mm)

420

3.7

Tread, rear

b₁₁ (mm)

380

Dimensions

4.4

Lift

h₃ (mm)

115

4.9

Height of tiller in drive position min./ max.

h₁₄ (mm)

840 / 1185

4.15

Height, lowered

h₁₃ (mm)

85

4.19

Overall length

l₁ (mm)

1686

4.20

Length to face of forks

l₂ (mm)

536

4.21

Overall width

b₁ (mm)

540

4.22

Fork dimensions

s/e/l (mm)

48 / 160 / 1150

4.25

Distance between fork- arms

b₅ (mm)

540

4.32

Ground clearance, centre of wheelbase

m₂ (mm)

37

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

2156

4.35

Turning radius

Wa (mm)

1482

Performance data

5.1

Travel speed, laden/ unladen

km/h

4.0/ 4.5

5.2

Lift speed, laden/ unladen

m/s

0.030 / 0.053

5.3

Lowering speed, laden/ unladen

m/s

0.050 / 0.048

5.8

Max. gradeability, laden/ unladen

%

4 / 10

5.10

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating  S2 60min

kW

0.45

6.2

Lift motor rating at S3 10%

kW

0.8

6.3

Battery acc. to DIN 43531/ 35/ 36 A, B, C, no

No

6.4

Battery voltage, nominal capacity K5

V / Ah

2x12V / 45

6.5

Battery weight

kg

28

6.6

Energy consumption acc. to VDI cycle

kWh/h

0.25

Addition data

8.1

Type of drive control

DC speed Control

8.4

Sound level at driver`s ear acc. to EN 12053

dB(A)

<70
